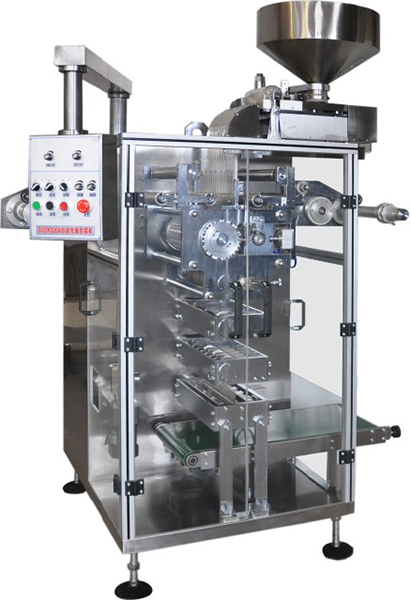

DXDK320A四邊封條袋包裝機

DXDK320A FOUR-EDGJES SEALING AND LARGE NUMBER OF BAG OF PACKING MACHINE

特點

Features

四邊封條，同時進行多條袋包裝，包裝效率高。

PLC控制，自動化程度高。

無級變頻調速，性能可靠，操作放便。

光電跟蹤、浮動對標、保證條袋包裝雙面圖案完整，位置準確。

自動打批號、壓撕裂線。

適用范圍

醫藥、食品、化妝品等行業對膠囊、片劑物料的包裝。

Sealing four edges of bag,simultaneously packing many bands of

bags, hav-ing high packing speed.

Controlled by PLC, having high automatization.

The stepless frequency conversion variable speeds, having reiable

perfor-mances,easy operation.

It is equiped with photoelectric tracking device and floating alignment

mark to ensure a complete paattern and precise on both faces of the

package of the band bags.

Automatically printing serial numbers and presjsing longituidinal and

transverse breaking lines.

Application

Applicable for packing capsules, tablets, sticky and semi-sticky materials in pharmaceutical, food processing and cosmetic industries.

技術參數

Specifications

沖裁次數 Cutting frequency	≤30次／分 (times/min)
包裝效率 Packing speed (pills/min)	400～1200粒／分 (pills/min)
包裝材料 Packing material	塑鋁塑復合膜 Compound film made of plastic andaluminium and plastic
包裝劑量 Packing dose	片劑、膠囊、多片（粒） tablets capsules: many pieces (pills)
電源總功率 Installed power	6kW
電壓 Voltage	380V/50Hz
外形尺寸（長×寬×高） Size L×W×H(mm)	1500 x1070×2100
重量（公斤） Weight( kg)	1200
